Datos del producto:
|
| Acero de carbono: | , S235JRG2, P245GH, P250GH, A105, SS400, SF440 RST37.2C22.8 | Acero inoxidable: | F304 F304L F316 F316L |
|---|---|---|---|
| Tamaño: | EL 1/2” NOTA A 48" NOTA | Presión: | PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Tratamiento superficial: | Pintura antioxidante transparente/amarilla/negra del aceite antioxidante, cinc, caliente sumergido g | Embalaje: | Fumigue o fumigue no la madera contrachapada/la plataforma o la caja de madera |
| Uso: | Campo petrolífero, a poca distancia de la costa, circuito de agua, construcción naval, gas natural, | ||
| Resaltar: | Plate Blind PN10 EN1092-1 FLANGE,SO WN PN25 EN1092-1 FLANGE,PN40 Yellow Rust Proof Oil FLANGE |
||
EN1092-1 PN6,PN10,PN16,PN25,PN40,PN100,Plate ,Blind,So ,Wn ,Carbon Steel And Stainless Steel,Yellow,Rust Proof Oil
CARBON STEEL FLANGE EN1092-1 & DIN PN6 PN10 PN16 PN25 PN40
We are a leading manufacturer in flanges and pipefittings in China and our products have been exported to customers all over the world ,such as korea,russia,coutries and regions in middle east,southeast Asia,south America and west Europe.
the flanges and the pipefittings collection in th emost standard and material.
We think the quality is the soul of an enterprise,so we put the quality as the first consideration.and now if your quantity can reach 1-2 20 foot containers we can try our best to give you our some discounts ,hope we can get a chance to cooeprate with you and your esteemed company .
further information will be forwarded to you to promote cooperation .
Product Specification
| Flange Type |
TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges) |
| Carbon Steel | P235GH;P245GH;P250GH;A105;ST37.2;SS400 |
| Stainless | F304;F304L;F316;F316L |
| Coating | Black Paint, Yellow Paint, Anti-rust oil, Galvanizing etc |
| Usage | Used for the connection of all kinds of pipeline to convey the water, steam, air, gas and oil |
| SIZE | MATERIAL | FLANGE TYPE |
| 1/2"-80" | Stainless Steel | weld neck flange |
| Slip on Flange | ||
| socket weld flange | ||
| LAP Joint Flange | ||
| Threaded flange | ||
| blind flange | ||
| CARBON STEEL, STAINLESS STEEL | weld neck flange | |
| Slip on Flange | ||
| socket weld flange | ||
| LAP Joint Flange | ||
| Threaded flange | ||
| blind flange | ||
| Sealing face of flanges | RF with serrated finish | |
| FF with 3 waterlines | ||
| FF with smooth finis | ||
| RTJ (Ring Joint Type) | ||
| FF with serrated finish | ||
| RF with water lines |
Flange drawing

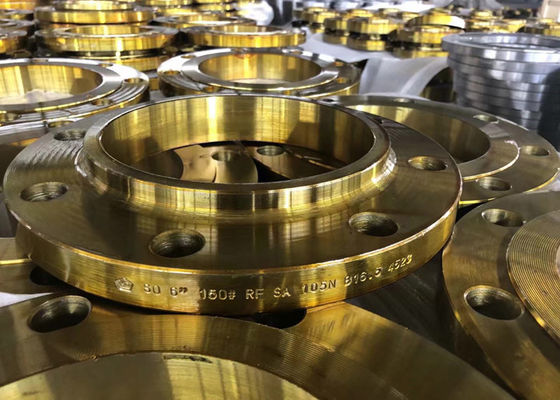

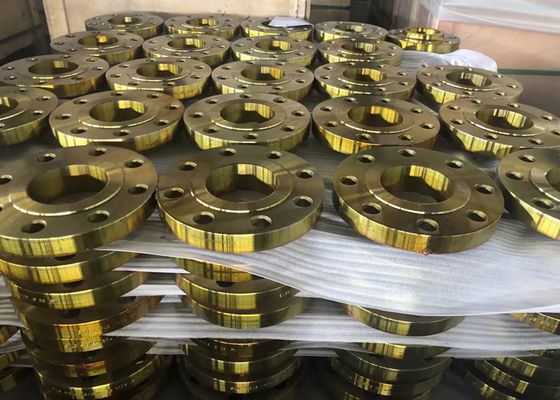

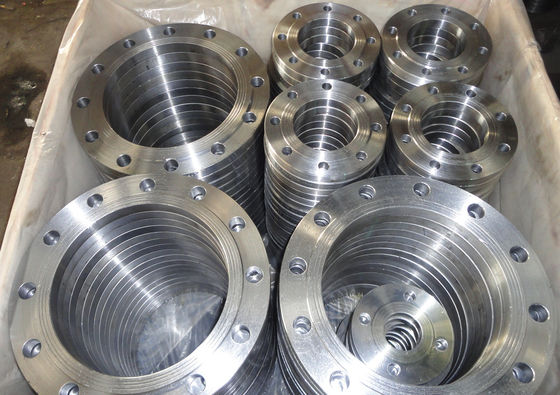

Product Picture
Wrokshop and Package
